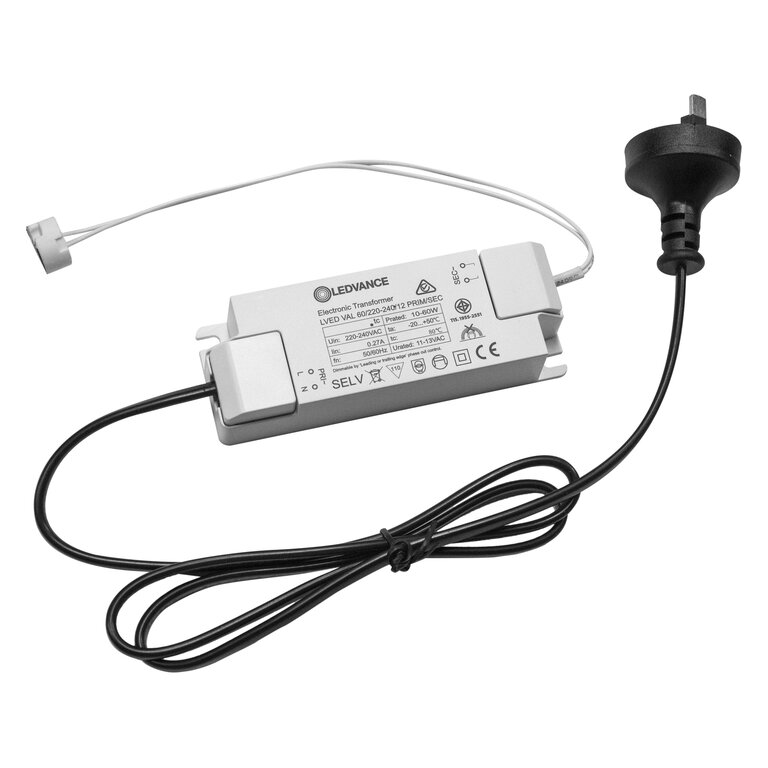

Electronic Transformer VED VAL 60/220 is a high-performance, compact power solution designed for use with halogen and LED dimmable lamps. Engineered for reliability and energy efficiency, this transformer features a sleek design with wide compatibility and a high power factor, making it ideal for residential and commercial lighting systems.
Product Features:
- Model: VED VAL 60/220
- Nominal Wattage: 60W
- Input Voltage: 220–240V AC
- Output Voltage: 11–13V AC
- Output Current: 270mA
- Mains Frequency: 50/60Hz
- Power Factor: > 0.95 (at full load)
- Total Harmonic Distortion: ≤ 10% (at full load)
- Operating Temperature: –20 to +50°C
- Maximum Case Temp: 80°C
- Dimmable: Yes
- Protection Class: SELV (Separated Extra Low Voltage)
- Ingress Protection: IP20
- Certifications: CE, EMC, SAA Approved
- Weight: 1844g
- Output Voltage Standard: 12V AC
Key Benefits:
✔ Long lifetime – reduces the need for maintenance
✔ High power factor for efficient performance
✔ Compact design for flexible installation
✔ Operates safely with dimmable lamps
✔ Fully compliant with IEC safety standards
✔ Excellent EMC performance
✔ Compatible with most dimmable LED and halogen loads
Applications:
- ✔ Residential lighting retrofits
- ✔ Architectural and decorative LED installations
- ✔ LED downlights and cabinet lighting
- ✔ Halogen lamp replacements in shops, galleries, and hospitality venues
